Operation and Storage
Sample Volume: 30ml minimum
Test Time: 1 minute (dilution required)
Viscosity: All oils

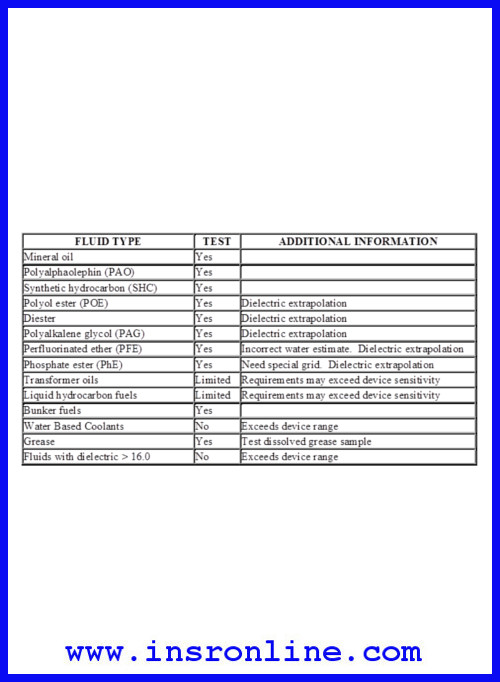

Lube Types: All mineral oils and synthetics
Cleaning: Wipe with absorbent tissues
Calibration: Performed onsite by user each day of use
Temperature: 32-120° F (0-50° C)
Operating: Temperature constant within +/- 5° F (3° C)
Technical Specifications
Physical Dimensions
Depth: 8.3 in. (212 cm)
Height: 2.6 in. (65 cm)
Width: 12.75 in. (325 cm)
Weight: 6.10 lbs (2.87 kg)
Power Supply
110 to 240 VAC Universal IEC Input 50 or 60 Hz.
Interface
• 2 x 16 character LCD

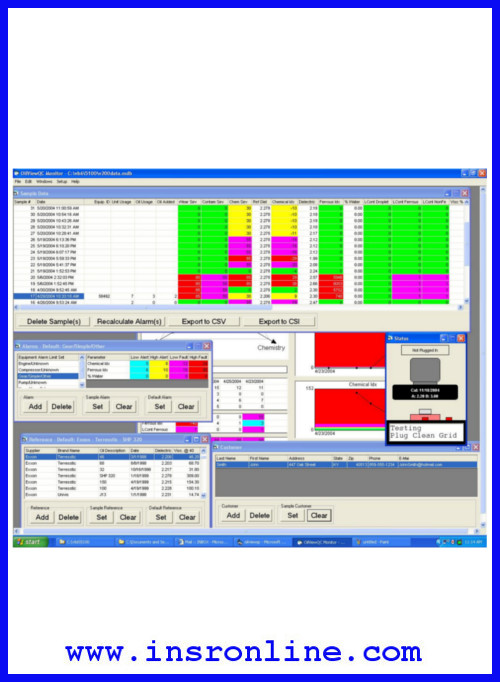

• 9-pin sub-D cable to IBM PC-compatible computers via RS-232C interface (cable provided with unit)
Measurements:
Dielectric: Compare with dielectric of clean oil to determine lube degradation
Ferrous Index: Ferrous particles > 5 microns
Large Ferrous Indication: Ferrous particles >> 60 microns
Large non-Ferrous Indication: Non-ferrous particles >> 60 microns
Droplet Indication: Free water droplets
Water: Water estimate
